今天来了解一些flutter的组件

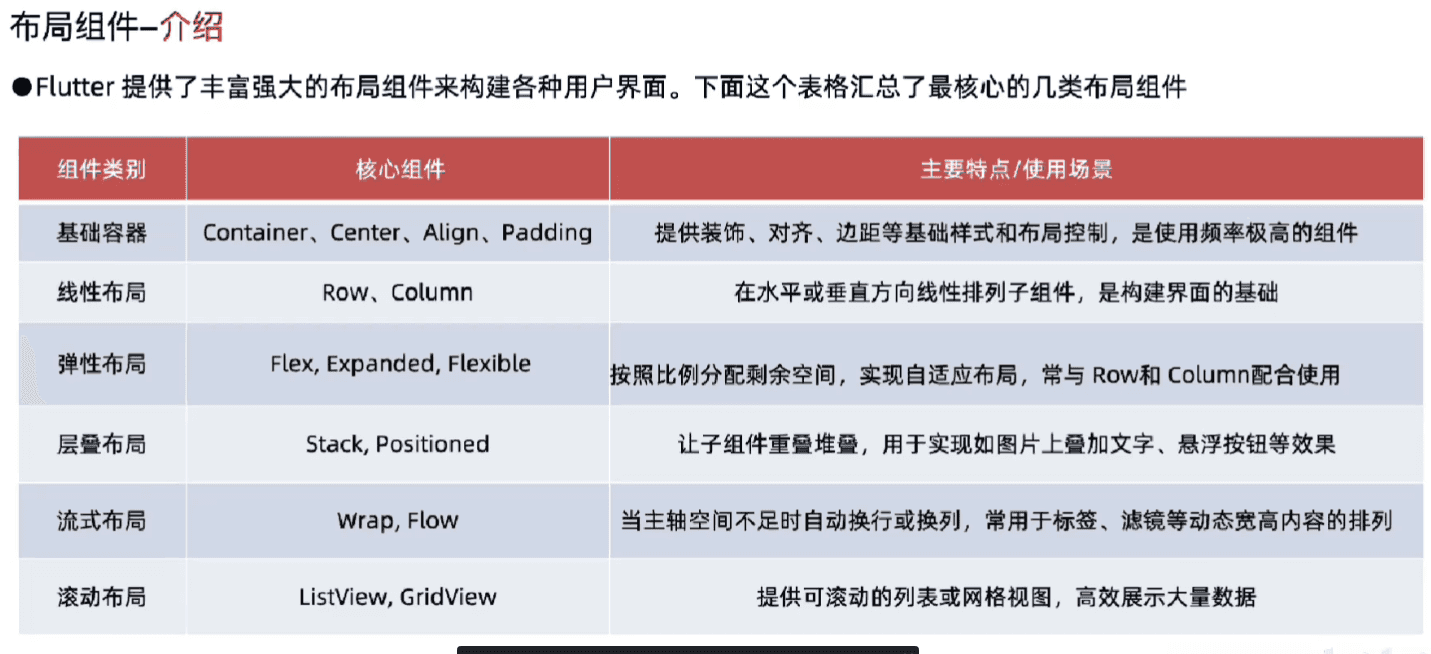

​ image-20260425145808331

Container(布局组件)

定义：Container是功能丰富的布局组件，是个多功能组合容器

尺寸控制：可通过多种方式定义大小，有明确优先级规则

优先级：明确宽高>constraints约束>父组件约束>自适应组件大小

装饰系统：通过decoration属性实现视觉效果，但和color属性互斥

布局控制：提供内外边距和对齐方式

可选变化：支持绘制时进行矩阵变换，如旋转、倾斜、平移等

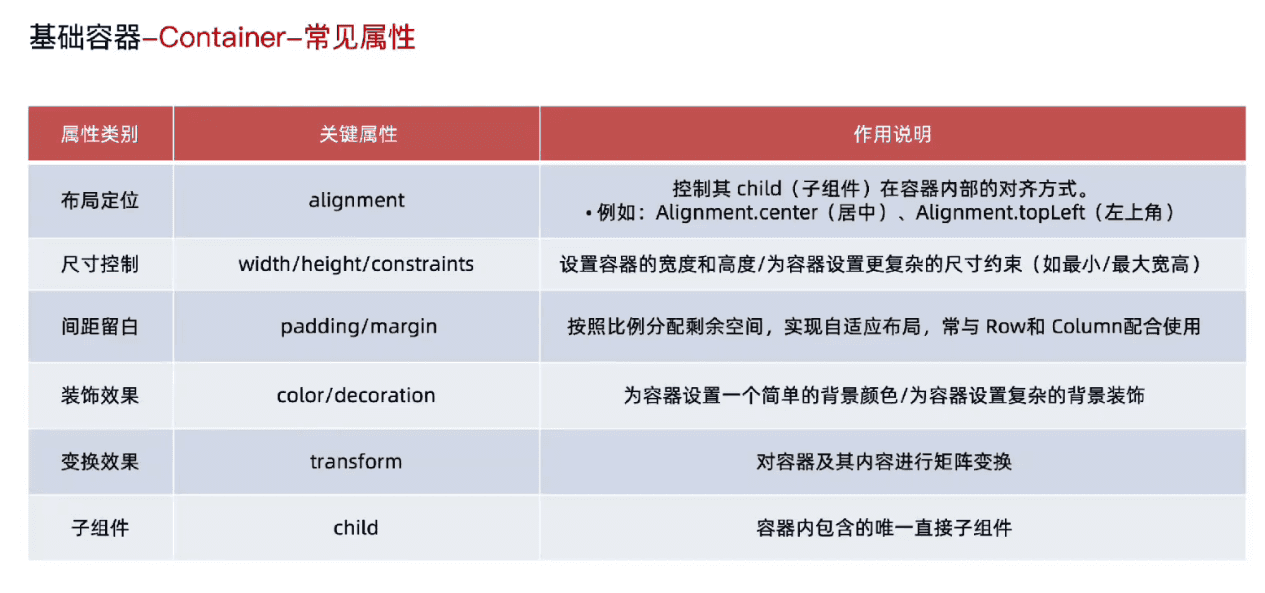

​ image-20260425150304387

例如

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(width: 200, height: 200, color: Colors.red),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

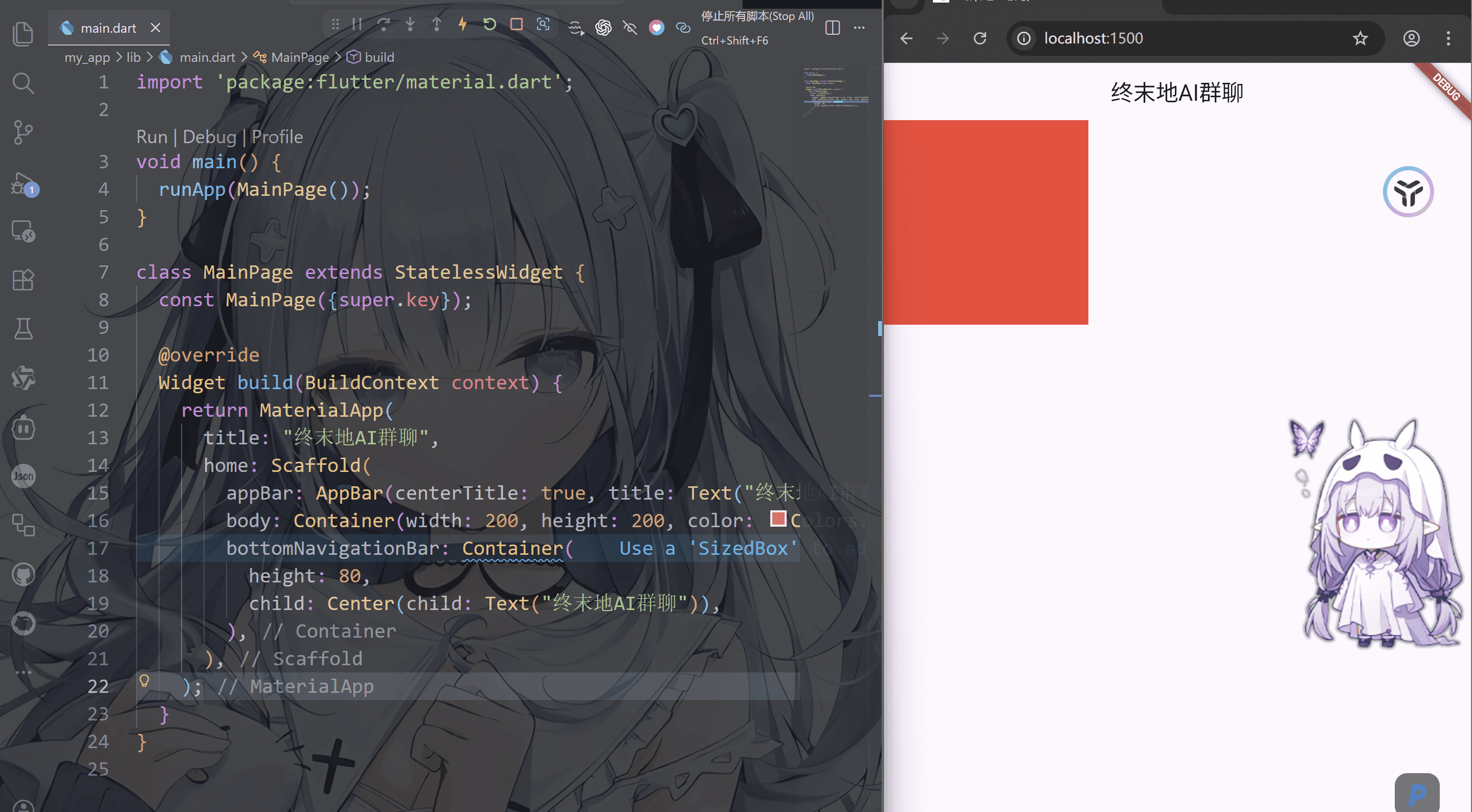

​ image-20260425150934912

好的,我们可以看到出现了红色方块,这个是用color来填充颜色的,而我们还有一种方式就是decoration装饰器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),

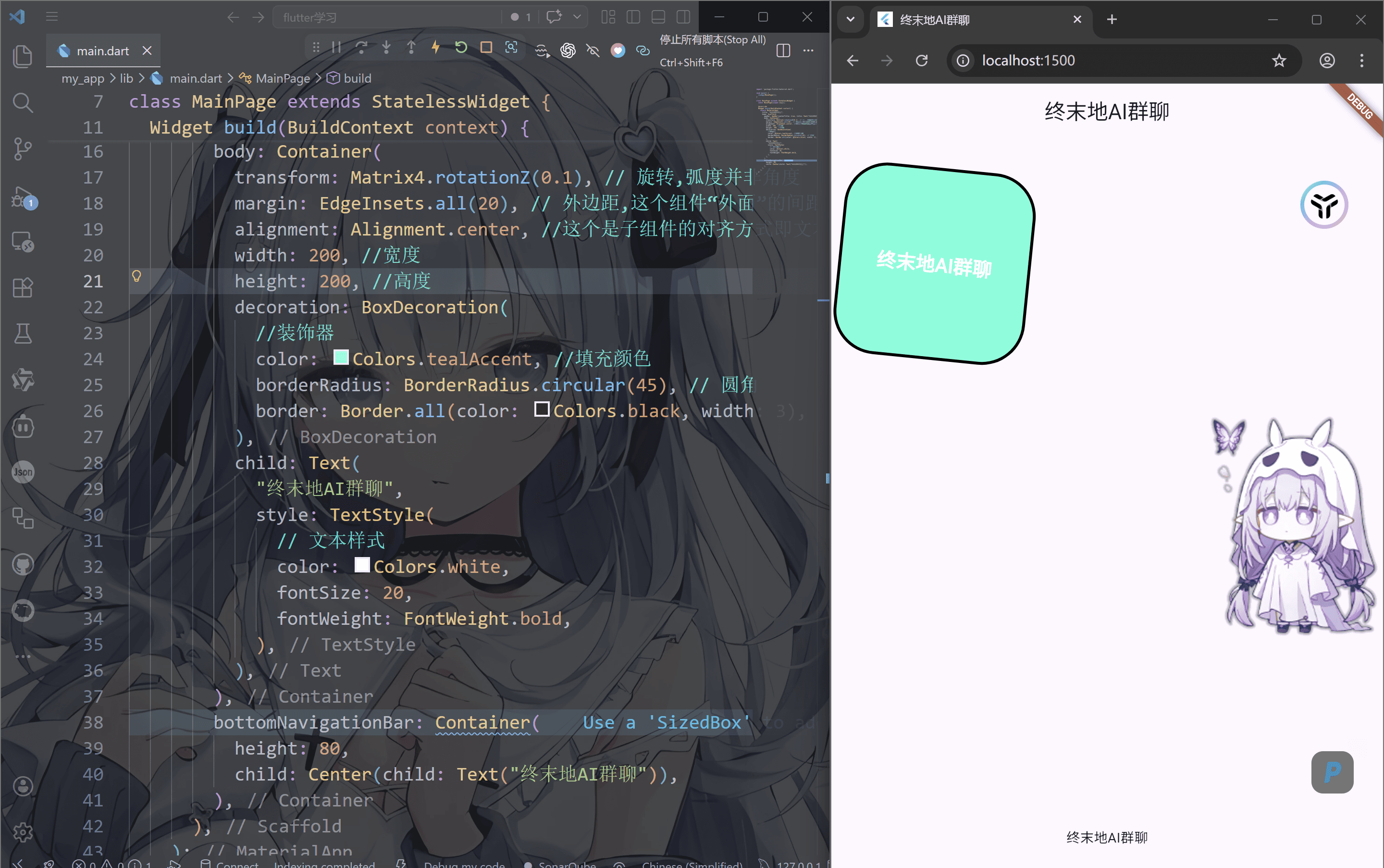

        body: Container(
          transform: Matrix4.rotationZ(0.1), // 旋转,弧度并非角度
          margin: EdgeInsets.all(20), // 外边距,这个组件“外面”的间距（和父组件之间的距离）
          alignment: Alignment.center, //这个是子组件的对齐方式即文本居中
          width: 200, //宽度
          height: 200, //高度
          decoration: BoxDecoration(
            //装饰器
            color: Colors.tealAccent, //填充颜色
            borderRadius: BorderRadius.circular(45), // 圆角
            border: Border.all(color: Colors.black, width: 3), //黑色边框，宽度3
          ),
          child: Text(
            "终末地AI群聊",
            style: TextStyle(
              // 文本样式
              color: Colors.white,
              fontSize: 20,
              fontWeight: FontWeight.bold,
            ),
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

​ image-20260425153447681

Center(居中组件)

Center：将其子组件在父容器的空间内进行水平和垂直方向上的居中排列

注意事项：Center不能设置宽高，Center的最终大小取决于其父组件传递给它的约束，Center会向它的父组件申请尽可能大的空间

实现固定宽且居中的组件：Center去包裹一个具有固定宽高的子组件。Container/SizeBox

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Center(
          child: Container(
            transform: Matrix4.rotationZ(0.1), // 旋转,弧度并非角度
            margin: EdgeInsets.all(20), // 外边距,这个组件“外面”的间距（和父组件之间的距离）
            alignment: Alignment.center, //这个是子组件的对齐方式即文本居中
            width: 200, //宽度
            height: 200, //高度
            decoration: BoxDecoration(
              //装饰器
              color: Colors.tealAccent, //填充颜色
              borderRadius: BorderRadius.circular(45), // 圆角
              border: Border.all(color: Colors.black, width: 3), //黑色边框，宽度3
            ),
            child: Text(
              "终末地AI群聊",
              style: TextStyle(
                // 文本样式
                color: Colors.white,
                fontSize: 20,
                fontWeight: FontWeight.bold,
              ),
            ),
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

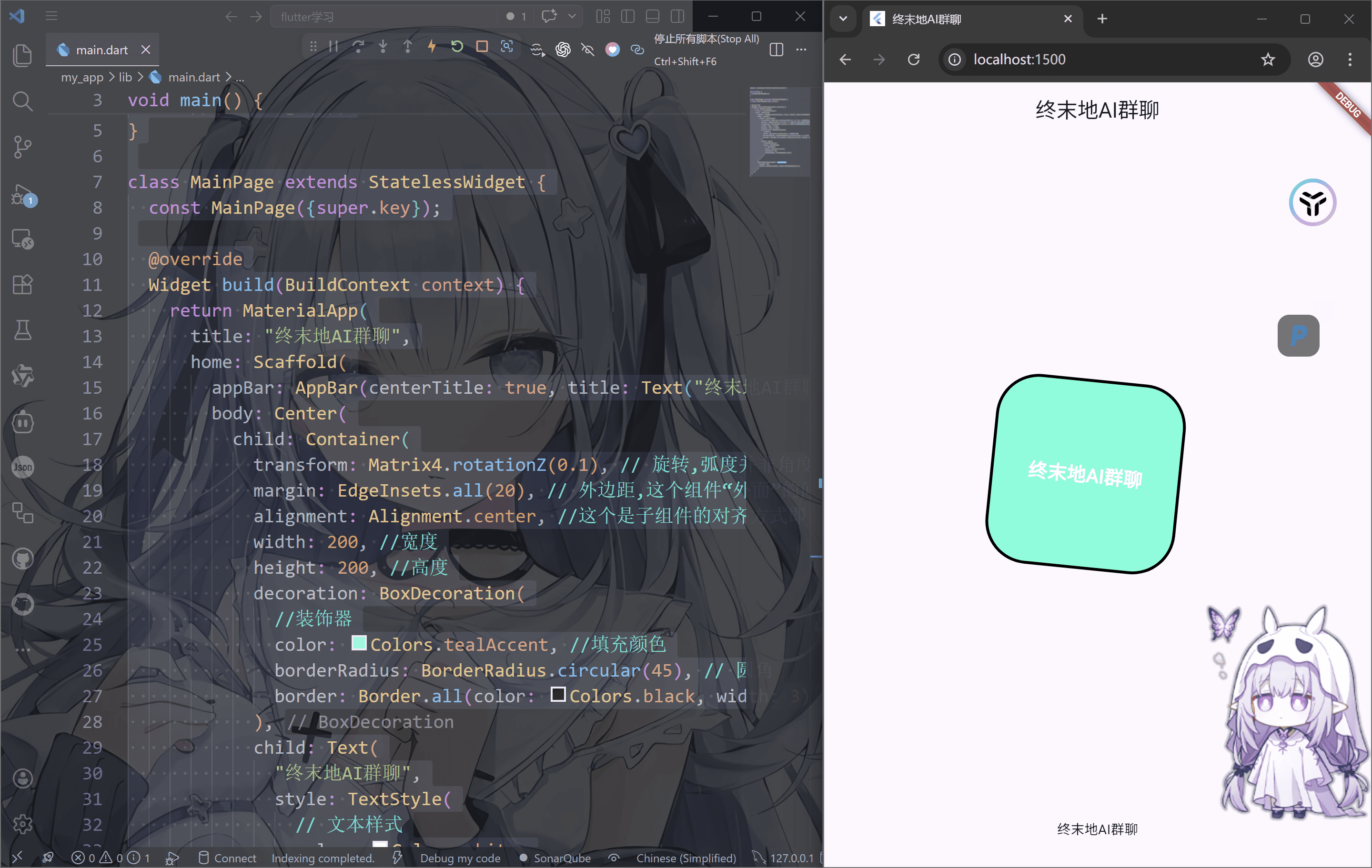

​ image-20260425154721577

Align(对齐组件)

作用：精确控制其子组件在父容器空间内的对齐位置

alignment(对齐方式)：子组件在父容器内的对齐方式

widthFactor(宽度因子）：Align的宽度将是子组件宽度乘以该因子

heightFactor(高度因子)：Align的高度将是子组件高度乘以该因子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          color: Colors.black,
          child: Align(
            // 使用Align组件来控制IconButton的对齐方式
            alignment: Alignment.center, // 设置对齐方式为居中
            widthFactor:
                null, // 设置宽度因子为1，使IconButton占满父级宽度,默认是null，表示根据子组件的宽度来确定父组件的宽度
            heightFactor:
                null, // 设置高度因子为1，使IconButton占满父级高度,默认是null，表示根据子组件的高度来确定父组件的高度
            child: IconButton(
              onPressed: () {
                // 处理点击事件
              },
              icon: Icon(
                Icons.connecting_airports,
                size: 100,
                color: Colors.cyanAccent,
              ),
            ),
          ),
        ),

        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

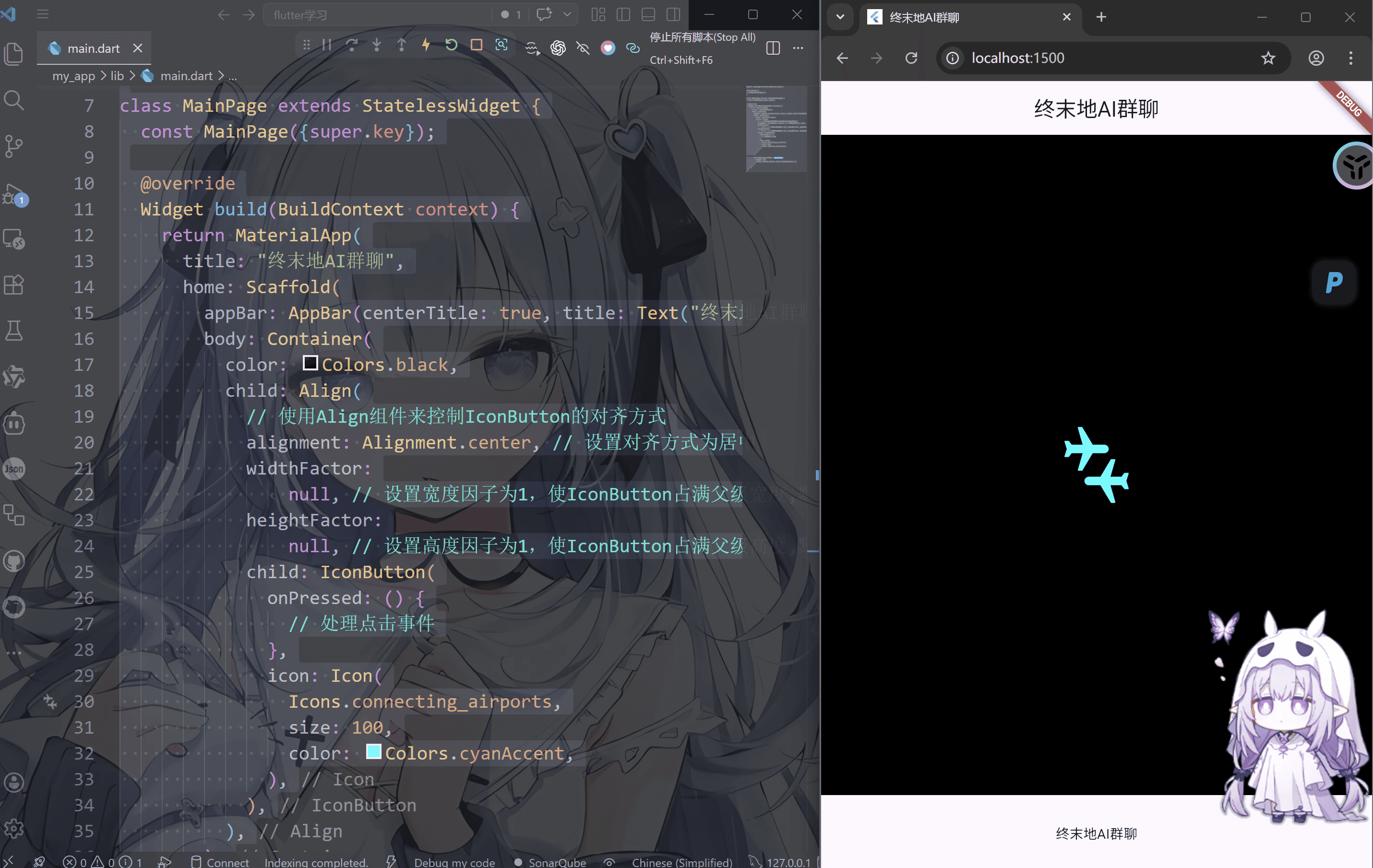

​ image-20260425161331502

  • 与Center的区别：Center是Align的一个特例，继承自Align，相当于一个将alignment属性为居中的Align.Center
  • 使用场景：当需要将个组件放置在父容器的特定角落，Align是理想选择
  • 动态尺寸：通过widthFactor和heightFactor，可以创建出与子组件大小成比例的容器，动态布局中很有用

Padding(内边距组件)

单独设置某个或者某几个方向的边距

EdgeInsets.all

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),

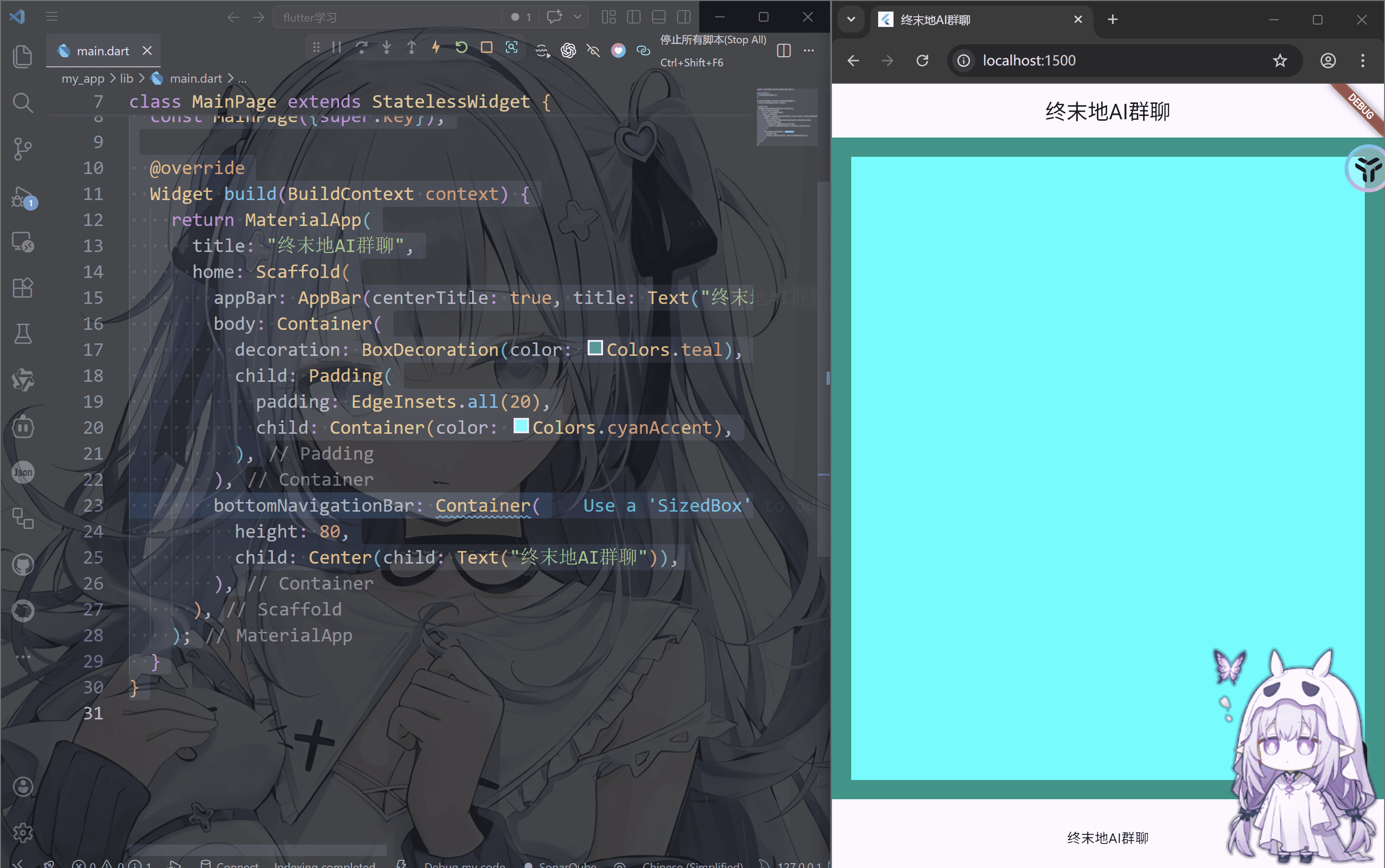

        body: Container(
          decoration: BoxDecoration(color: Colors.teal),
          child: Padding(
            padding: EdgeInsets.all(20),//这里all就是所有方向
            child: Container(color: Colors.cyanAccent),
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

​ image-20260425164406780

EdgeInsets.only

当然也可以指定那些

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          decoration: BoxDecoration(color: Colors.teal),
          child: Padding(
            padding: EdgeInsets.only(left: 25, right: 25),//使用only来指定对应方向的边距
            child: Container(color: Colors.cyanAccent),
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

我们也可以,使用Edgelnsets.symmetric属性进行对称设置，vertical(纵向）、horizontal(横向）来直接同时改两个方向

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          decoration: BoxDecoration(color: Colors.teal),
          child: Padding(
            padding: EdgeInsets.symmetric(horizontal: 50, vertical: 30),
            child: Container(color: Colors.cyanAccent),
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

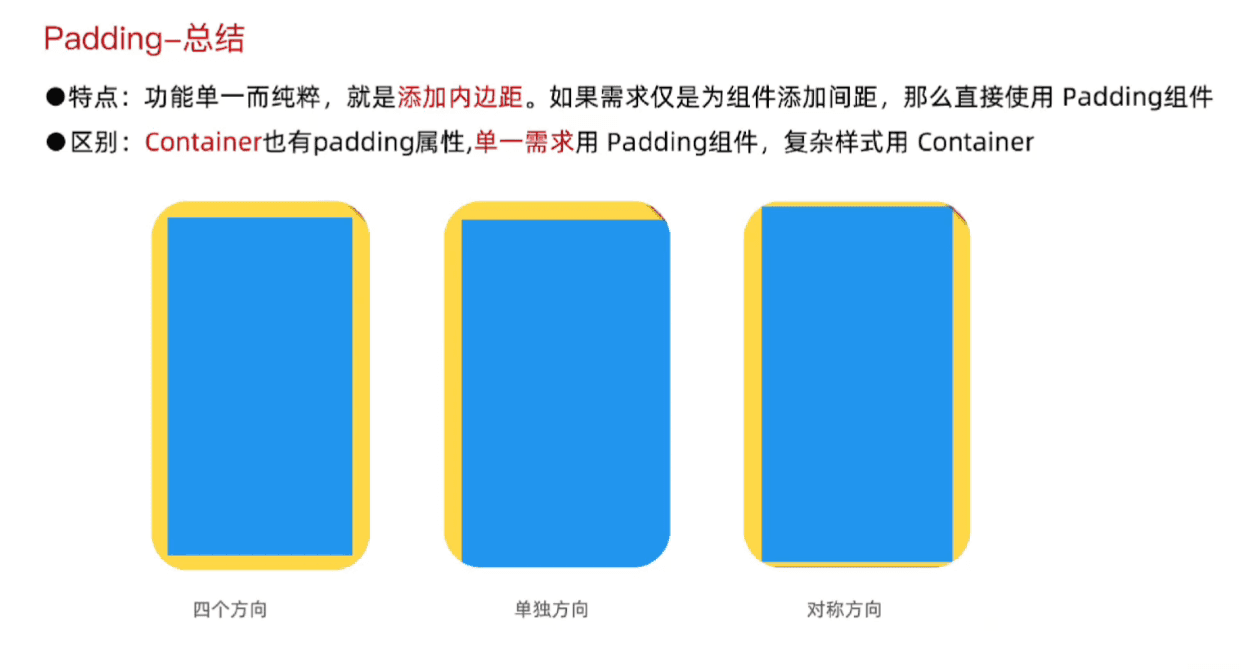

​ image-20260425165421128

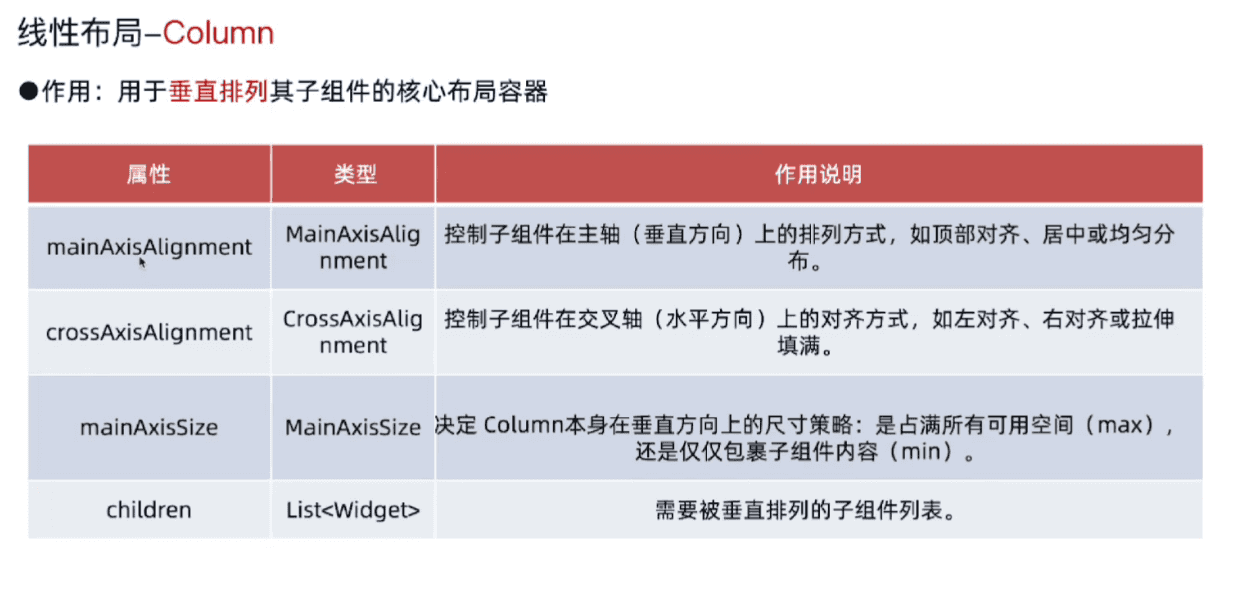

Column(垂直线性布局)

​ image-20260425170319112

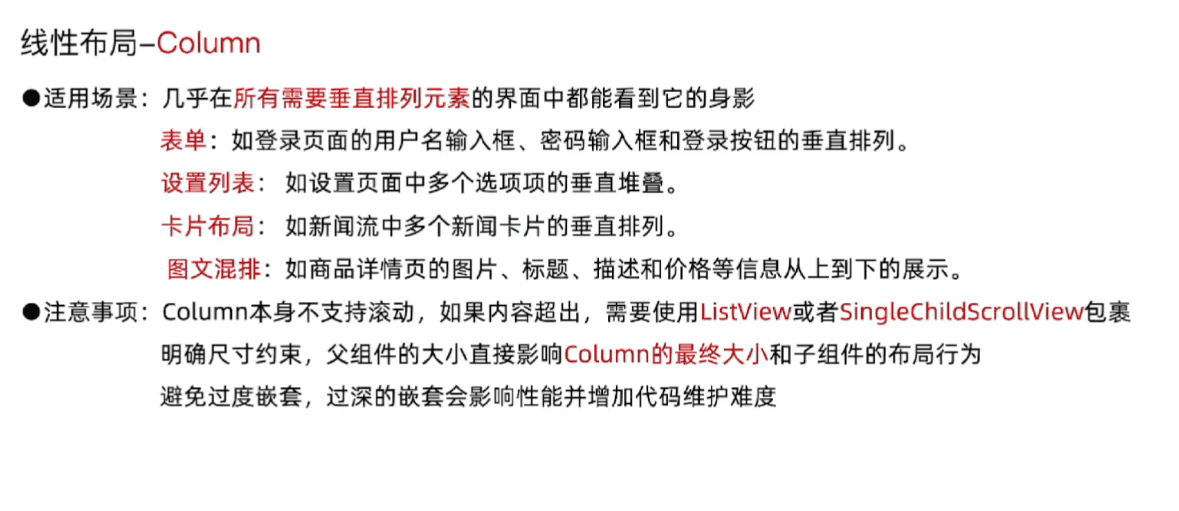

​ image-20260425175014701

主轴

主轴就是垂直的放在界面中间的轴

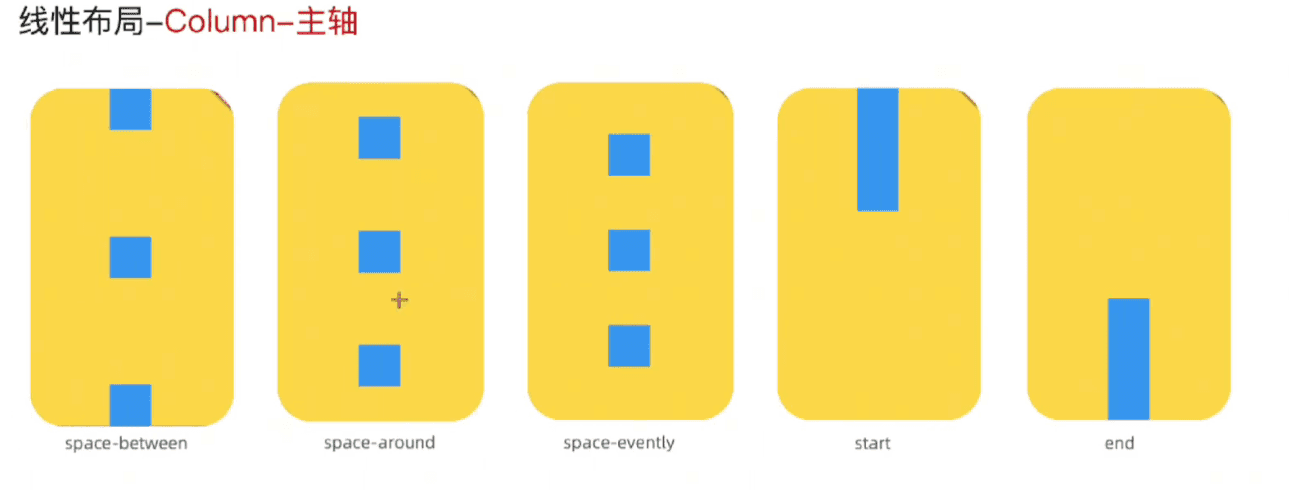

​ image-20260425170620396

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          width: double.infinity, //宽度占满父组件
          height: double.infinity, //高度占满父组件
          decoration: BoxDecoration(color: Colors.tealAccent),
          child: Column(
            //mainAxisAlignment: MainAxisAlignment.spaceAround,//环绕模式
            //mainAxisAlignment: MainAxisAlignment.spaceBetween,//两头对齐
            //mainAxisAlignment: MainAxisAlignment.spaceEvenly, //均分模式
            //mainAxisAlignment: MainAxisAlignment.center,//居中模式
            //mainAxisAlignment: MainAxisAlignment.start, //从头对齐
            mainAxisAlignment: MainAxisAlignment.end, //从尾对齐
            children: [
              Container(height: 100, width: 100, color: Colors.blue),
              Container(height: 100, width: 100, color: Colors.green),
              Container(height: 100, width: 100, color: Colors.yellow),
              Container(height: 100, width: 100, color: Colors.orange),
              Container(height: 100, width: 100, color: Colors.pink),
              Container(height: 100, width: 100, color: Colors.purple),
            ],
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

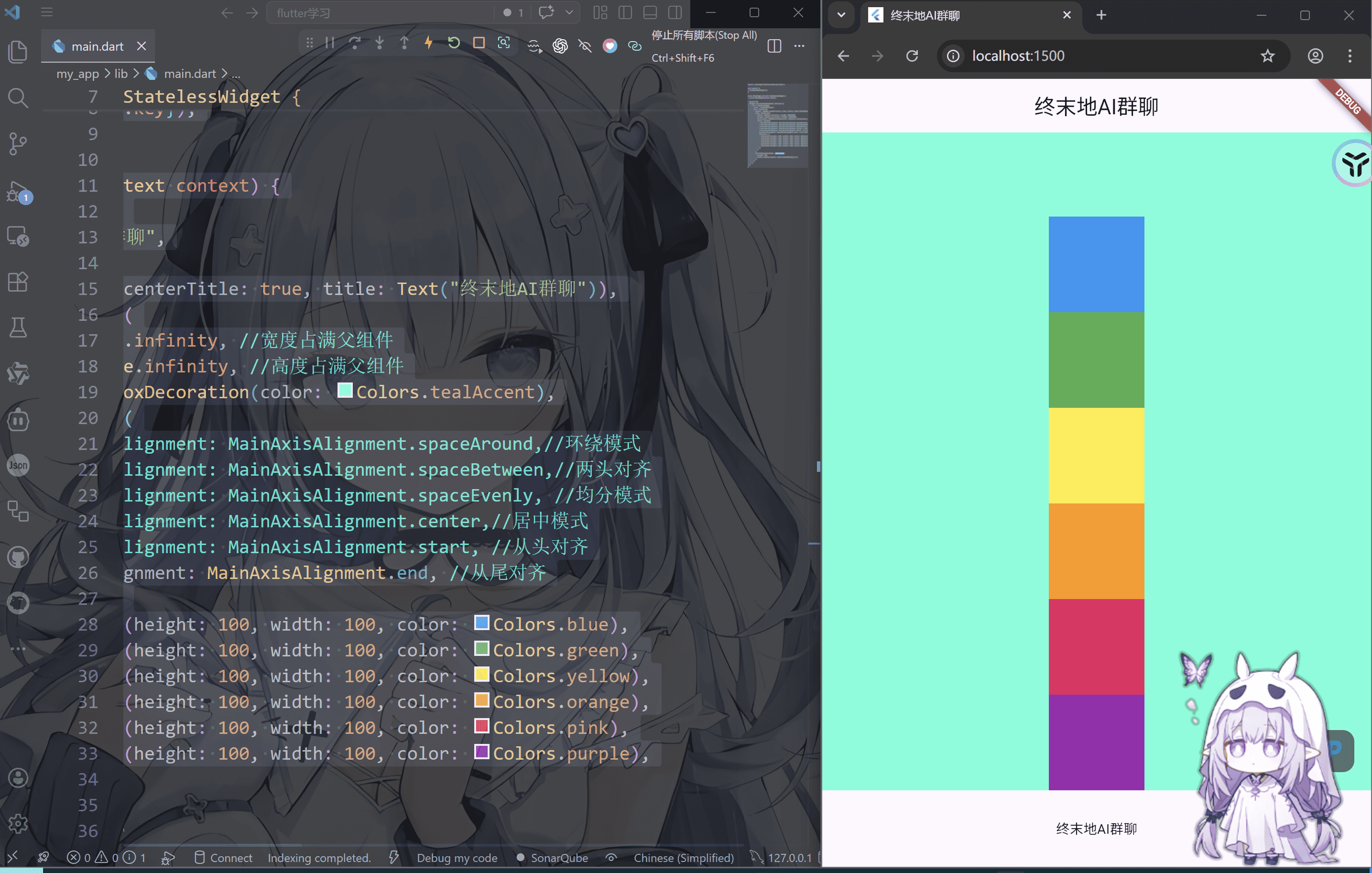

​ image-20260425172829780

mainAxisAligment

这里假设column有如下的资

1
2
3
4
5
6
7
Column(
  children: [
    Text("A"),
    Text("B"),
    Text("C"),
  ],
)
start

mainAxisAlignment: MainAxisAlignment.start

1
2
3
4
5
6
A
B
C


（全部挤在上面）
center

mainAxisAlignment: MainAxisAlignment.center

1
2
3
4
5
6
7
8


A
B
C


（整体居中）
end

mainAxisAlignment: MainAxisAlignment.end

1
2
3
4
5
6
7



A
B
C
（在底部）
spaceBetween

mainAxisAlignment: MainAxisAlignment.spaceBetween

1
2
3
4
5
6
7
8
A


B


C
（首尾贴边，中间平均分）
spaceAround

mainAxisAlignment: MainAxisAlignment.spaceAround

1
2
3
4
5
6
7
8

A

B

C

（上下都有间距）
spaceEvenly

mainAxisAlignment: MainAxisAlignment.spaceEvenly

1
2
3
4
5
6
7
8

A

B

C

（间距完全一样）

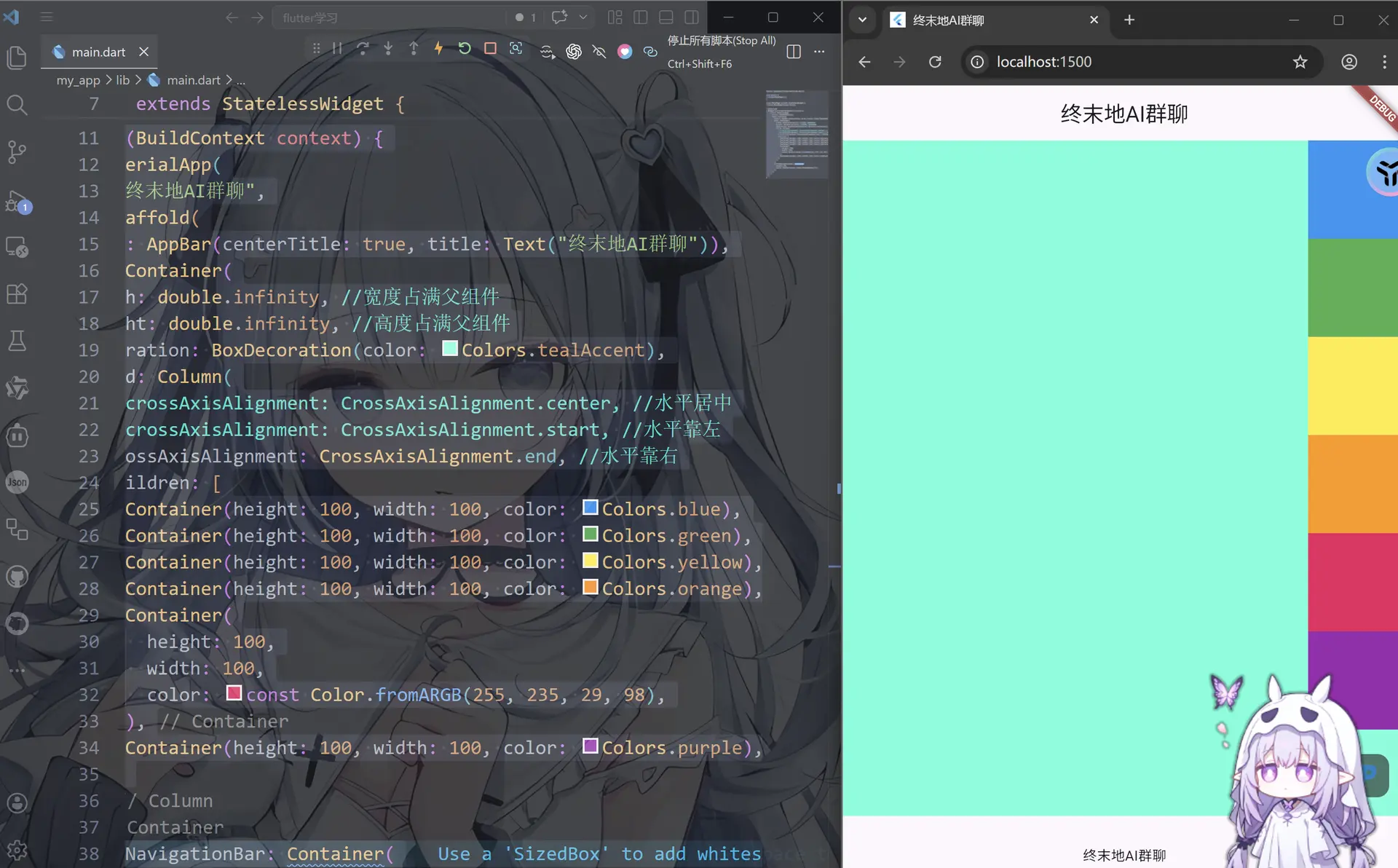

交叉轴

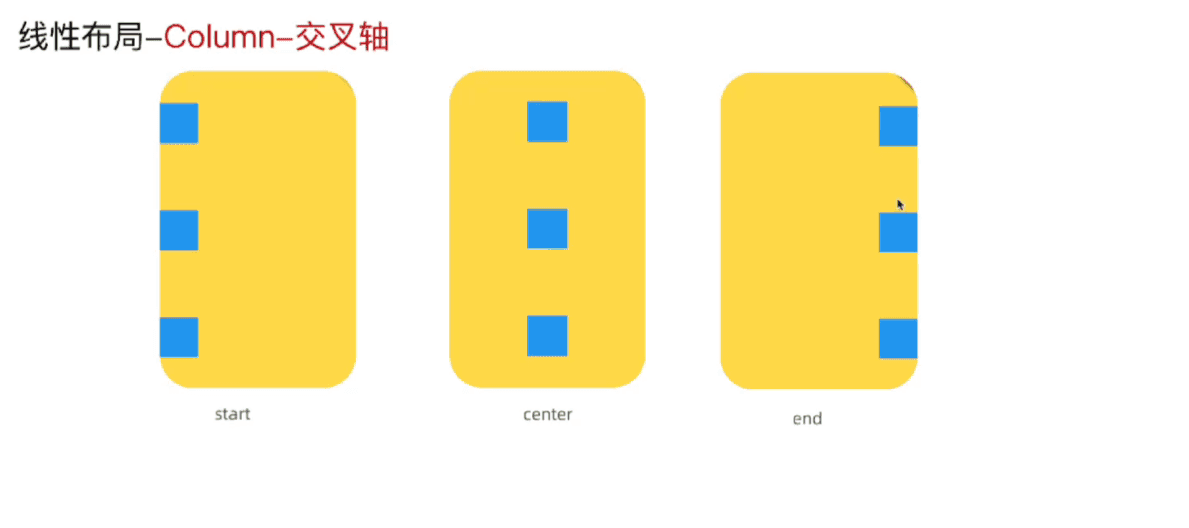

​ image-20260425173654371

属性 控制方向
mainAxisAlignment 上下（主轴）
crossAxisAlignment 左右（交叉轴）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          width: double.infinity, //宽度占满父组件
          height: double.infinity, //高度占满父组件
          decoration: BoxDecoration(color: Colors.tealAccent),
          child: Column(
            //crossAxisAlignment: CrossAxisAlignment.center, //水平居中
            //crossAxisAlignment: CrossAxisAlignment.start, //水平靠左
            crossAxisAlignment: CrossAxisAlignment.end, //水平靠右
            children: [
              Container(height: 100, width: 100, color: Colors.blue),
              Container(height: 100, width: 100, color: Colors.green),
              Container(height: 100, width: 100, color: Colors.yellow),
              Container(height: 100, width: 100, color: Colors.orange),
              Container(
                height: 100,
                width: 100,
                color: const Color.fromARGB(255, 235, 29, 98),
              ),
              Container(height: 100, width: 100, color: Colors.purple),
            ],
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

​ image-20260425174129665

crossAxisAlignment

start

crossAxisAlignment: CrossAxisAlignment.start

1
2
3
4
A
B
C
（左对齐）
center

crossAxisAlignment: CrossAxisAlignment.center

1
2
3
4
   A
   B
   C
（水平居中）
end

crossAxisAlignment: CrossAxisAlignment.end

1
2
3
4
        A
        B
        C
（右对齐）
stretch

crossAxisAlignment: CrossAxisAlignment.stretch

这个不好描述,大概就是如字面意思stretch延伸

image-20260425174824933

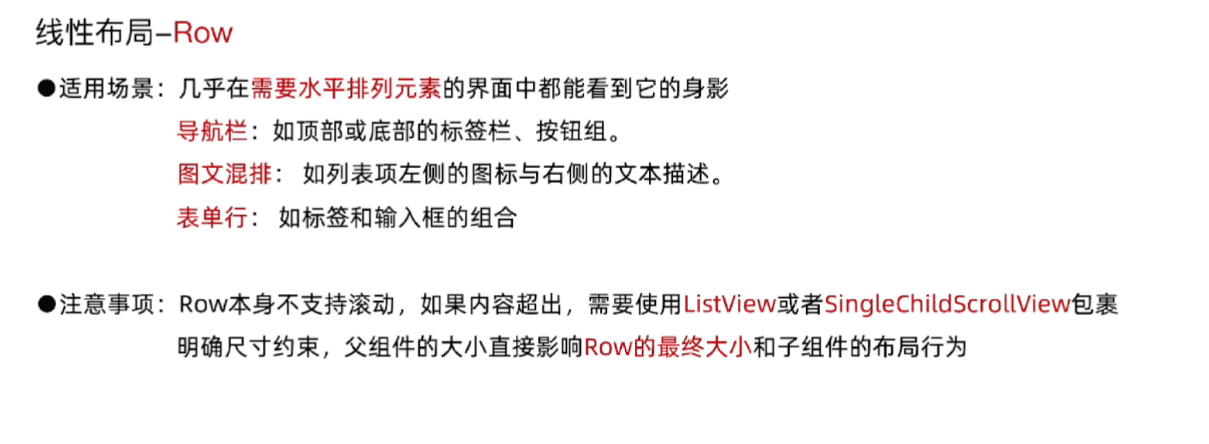

Row(水平线性布局)

​ image-20260427102342894

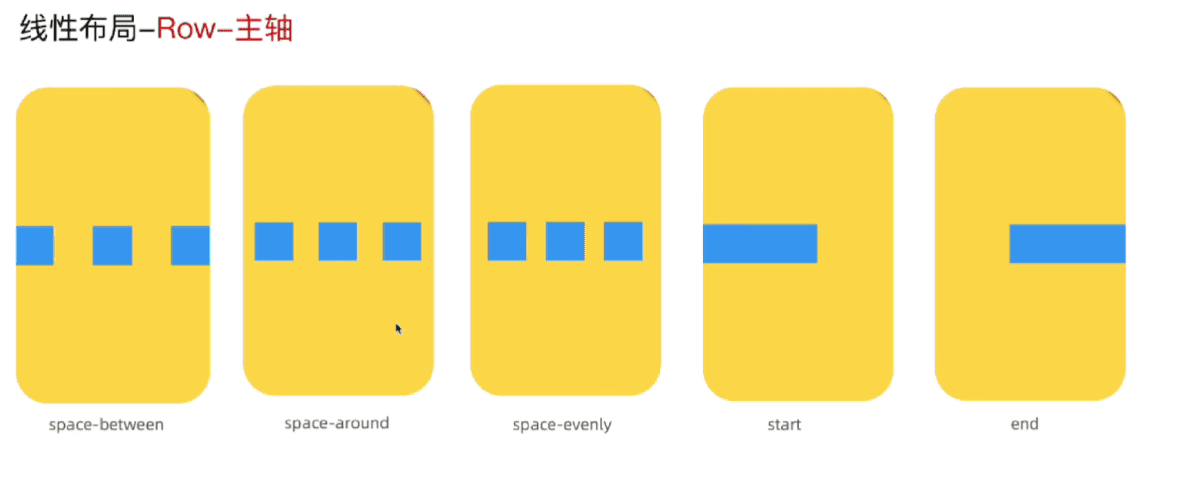

主轴

刚才我们学的都是竖直排列的,现在我们看看水平排列的吧

​ image-20260426111806727

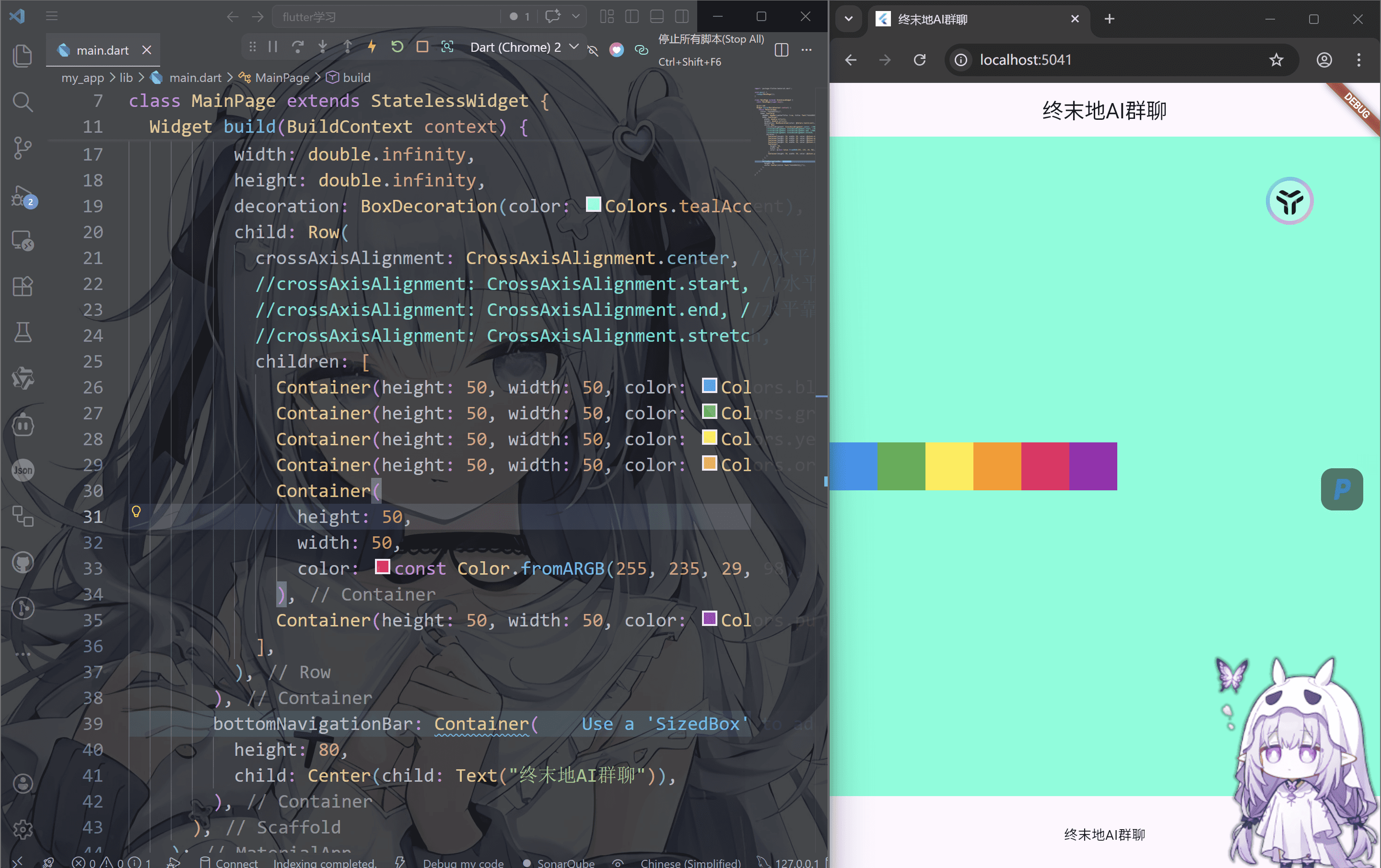

这个和Column几乎一模一样,连属性都可以复用

​ image-20260426112350098

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          width: double.infinity,
          height: double.infinity,
          decoration: BoxDecoration(color: Colors.tealAccent),
          child: Row(
            crossAxisAlignment: CrossAxisAlignment.center, //水平居中
            //crossAxisAlignment: CrossAxisAlignment.start, //水平靠左
            //crossAxisAlignment: CrossAxisAlignment.end, //水平靠右
            //crossAxisAlignment: CrossAxisAlignment.stretch,
            children: [
              Container(height: 50, width: 50, color: Colors.blue),
              Container(height: 50, width: 50, color: Colors.green),
              Container(height: 50, width: 50, color: Colors.yellow),
              Container(height: 50, width: 50, color: Colors.orange),
              Container(
                height: 50,
                width: 50,
                color: const Color.fromARGB(255, 235, 29, 98),
              ),
              Container(height: 50, width: 50, color: Colors.purple),
            ],
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

SizedBox

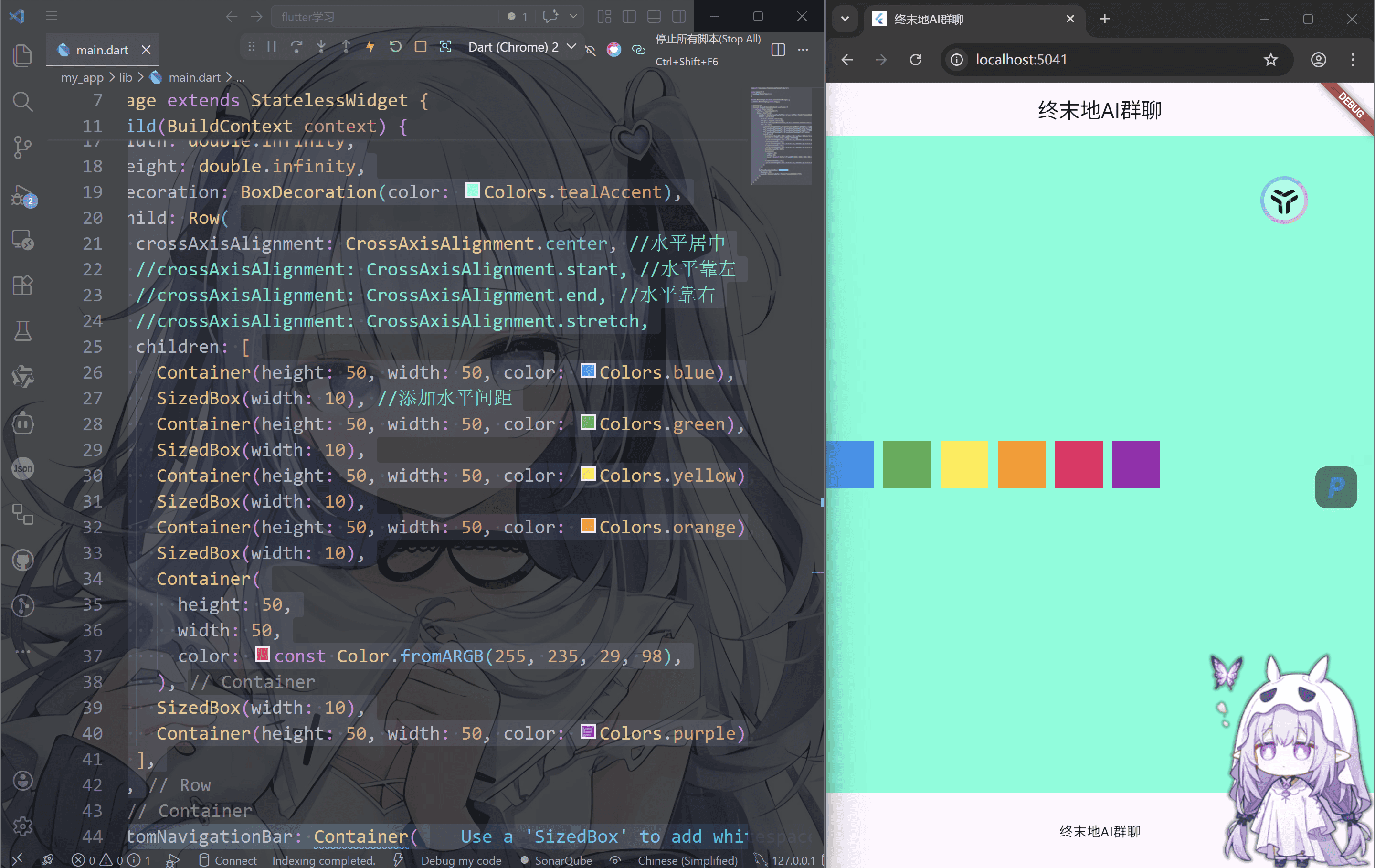

当然我们也可以手动增加边距使用SizedBox

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          width: double.infinity,
          height: double.infinity,
          decoration: BoxDecoration(color: Colors.tealAccent),
          child: Row(
            crossAxisAlignment: CrossAxisAlignment.center, //水平居中
            //crossAxisAlignment: CrossAxisAlignment.start, //水平靠左
            //crossAxisAlignment: CrossAxisAlignment.end, //水平靠右
            //crossAxisAlignment: CrossAxisAlignment.stretch,
            children: [
              Container(height: 50, width: 50, color: Colors.blue),
              SizedBox(width: 10), //添加水平间距
              Container(height: 50, width: 50, color: Colors.green),
              SizedBox(width: 10),
              Container(height: 50, width: 50, color: Colors.yellow),
              SizedBox(width: 10),
              Container(height: 50, width: 50, color: Colors.orange),
              SizedBox(width: 10),
              Container(
                height: 50,
                width: 50,
                color: const Color.fromARGB(255, 235, 29, 98),
              ),
              SizedBox(width: 10),
              Container(height: 50, width: 50, color: Colors.purple),
            ],
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

​ image-20260426112716670

margin

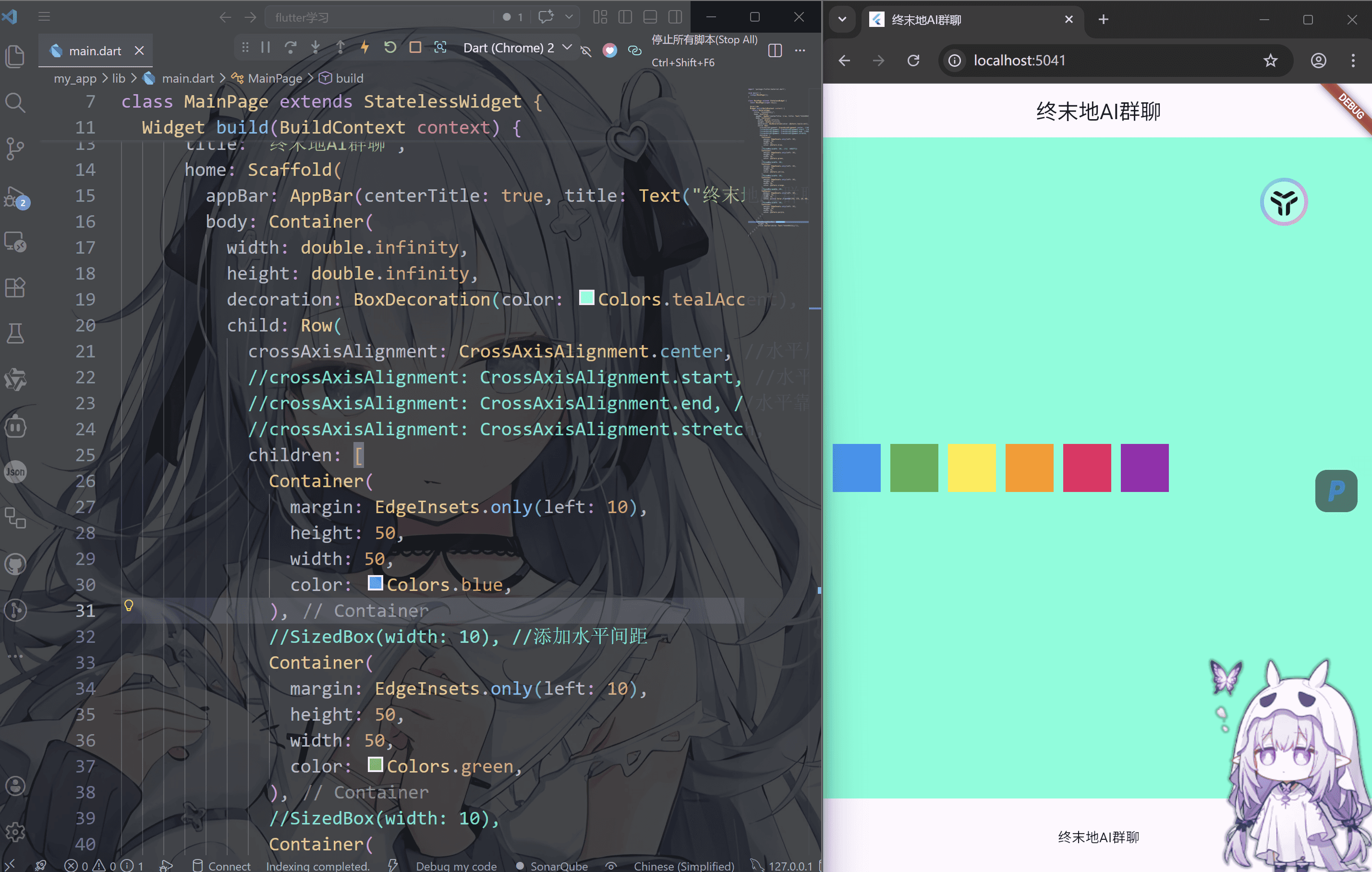

还有一种方式就是使用margin

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          width: double.infinity,
          height: double.infinity,
          decoration: BoxDecoration(color: Colors.tealAccent),
          child: Row(
            crossAxisAlignment: CrossAxisAlignment.center, //水平居中
            //crossAxisAlignment: CrossAxisAlignment.start, //水平靠左
            //crossAxisAlignment: CrossAxisAlignment.end, //水平靠右
            //crossAxisAlignment: CrossAxisAlignment.stretch,
            children: [
              Container(
                margin: EdgeInsets.only(left: 10),
                height: 50,
                width: 50,
                color: Colors.blue,
              ),
              //SizedBox(width: 10), //添加水平间距
              Container(
                margin: EdgeInsets.only(left: 10),
                height: 50,
                width: 50,
                color: Colors.green,
              ),
              //SizedBox(width: 10),
              Container(
                margin: EdgeInsets.only(left: 10),
                height: 50,
                width: 50,
                color: Colors.yellow,
              ),
              //SizedBox(width: 10),
              Container(
                margin: EdgeInsets.only(left: 10),
                height: 50,
                width: 50,
                color: Colors.orange,
              ),
              //SizedBox(width: 10),
              Container(
                margin: EdgeInsets.only(left: 10),
                height: 50,
                width: 50,
                color: const Color.fromARGB(255, 235, 29, 98),
              ),
              //SizedBox(width: 10),
              Container(
                margin: EdgeInsets.only(left: 10),
                height: 50,
                width: 50,
                color: Colors.purple,
              ),
            ],
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

​ image-20260426113508476

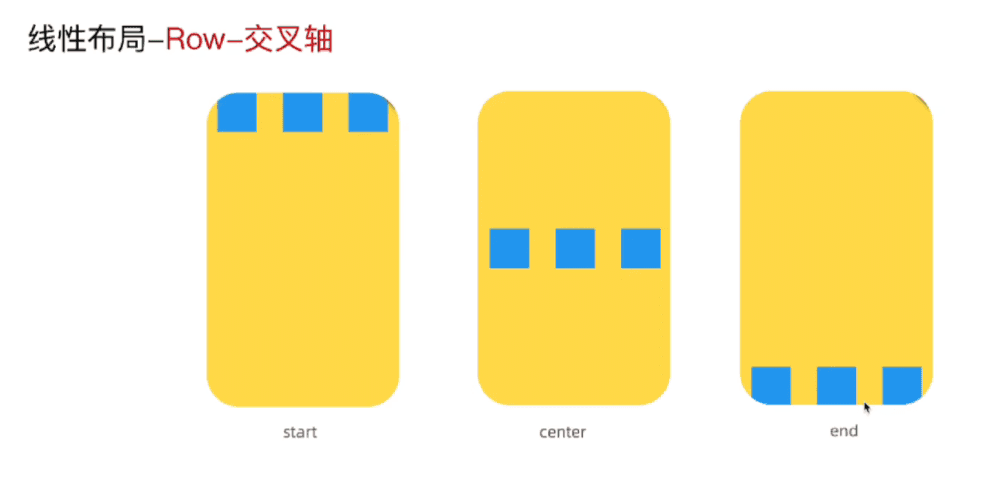

交叉轴

这个和刚才的一样的

​ image-20260427101954677

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
import 'package:flutter/material.dart';

void main() {
  runApp(MainPage());
}

class MainPage extends StatelessWidget {
  const MainPage({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: "终末地AI群聊",
      home: Scaffold(
        appBar: AppBar(centerTitle: true, title: Text("终末地AI群聊")),
        body: Container(
          width: double.infinity, //宽度占满父组件
          height: double.infinity, //高度占满父组件
          decoration: BoxDecoration(color: Colors.tealAccent),

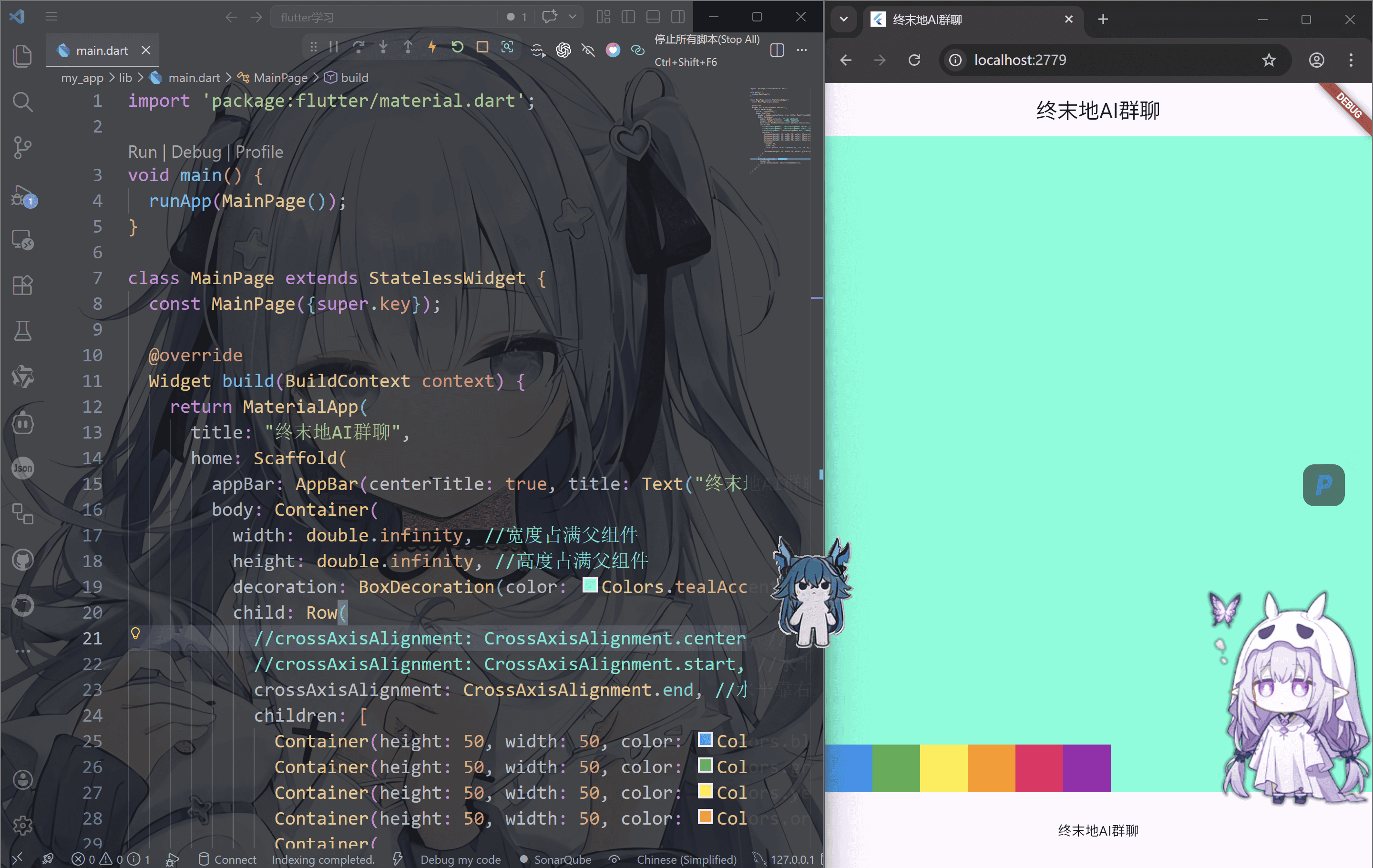

          child: Row(
            //crossAxisAlignment: CrossAxisAlignment.center, //水平居中
            //crossAxisAlignment: CrossAxisAlignment.start, //水平靠左
            crossAxisAlignment: CrossAxisAlignment.end, //水平靠右
            children: [
              Container(height: 50, width: 50, color: Colors.blue),
              Container(height: 50, width: 50, color: Colors.green),
              Container(height: 50, width: 50, color: Colors.yellow),
              Container(height: 50, width: 50, color: Colors.orange),
              Container(
                height: 50,
                width: 50,
                color: const Color.fromARGB(255, 235, 29, 98),
              ),
              Container(height: 50, width: 50, color: Colors.purple),
            ],
          ),
        ),
        bottomNavigationBar: Container(
          height: 80,
          child: Center(child: Text("终末地AI群聊")),
        ),
      ),
    );
  }
}

​ image-20260427102232760
